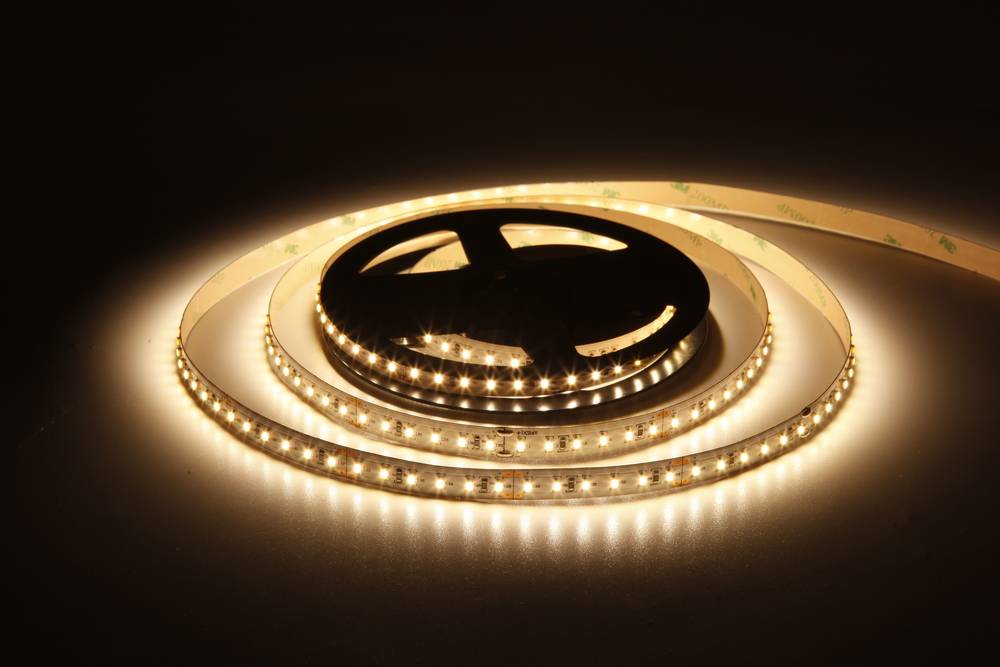

2835 LED flexible strip 140leds/m

Model No.:  PD-S2835-140-24
Length:  5meters/Roll
Power:  14W/m
Width:  10mm
Color:  Warm White/White/RGB
LED Qty:  140LED/m
Voltage:  24VDC
Lumen:  2000LM
Beam:  120°
CRI:  80+,90+
Thickness:  2,3,4  OZ
IP rating:  IP20  IP65  IP68

SMD2835 high brightness led  Strips  140 LEDs/M,150LM/W

· High Performance and brightness
· CRI>80, 90, 98 available
· Passed CE, GS, RoHS, LM79 and LM80 test
· Widely used for exterior and interior lighting, cove lighting, decorative lighting, backlight or edge lighting for signage
· Festival celebrations’ decorations,such as Christmas, New Year holidays.

Structure:



Linking operation:


Packaging:

Note:
· Please ensure that the power supply is of adapters power to operate the total load.
· Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
· When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical
isolation points between strip and the mounting surface.

· Pay attention to standard ESD precautions when installing the strip.
